The Secret to Flawless Carpet Tile Installation? It’s All in the Arrows
For “The Secret to Flawless Carpet Tile Installation? It’s All in the Arrows”, do not rely on one material name, number or marketing claim. Turn receipt, subflo
Direct answer
What decision does this article support?
For “The Secret to Flawless Carpet Tile Installation? It’s All in the Arrows”, do not rely on one material name, number or marketing claim. Turn receipt, subfloor, layout, installation, acceptance and care into one documented delivery process. The decision must trace to project conditions, samples and product-specific evidence.
This guide is for installation managers, facilities leads, dealers working together during comparison, project review or pre-delivery checks. Use it with the actual zones, traffic, schedule, budget and available documents.
Turn receipt, subfloor, layout, installation, acceptance and care into one documented delivery process.Ready for project review
Key takeaways
- 01
When evaluating “The Secret to Flawless Carpet Tile Installation? It’s All in the Arrows”, first document the zones, traffic, schedule and maintenance assumptio
- 02
Subfloor, adhesive system and product instructions must be compatible.
- 03
Approve arrows, datums, edges and transitions before installation starts.
- 04
Acceptance records and a care plan make later issues traceable.
Answer blocks
Turn the core question into actionable answers
What should be checked first for “The Secret to Flawless Carpet Tile Installation? It’s All in the Arrows”?
Confirm the relevant zones, intensity, schedule, budget and maintenance conditions, then verify each conclusion against physical samples, the exact data sheet and valid evidence.
What must be approved at layout stage?
Confirm starting point, datums, tile arrows, pattern, perimeter details, transitions and expected waste.
How is maintenance risk reduced after handover?
Retain attic stock and batch data, then record entry soil control, vacuuming, spot care, deep cleaning and local replacement.
You’ve just completed a large office installation. Same batch, same color code, same everything—yet the floor looks like a checkerboard of light and dark patches. Before you question the product quality, check one critical detail: carpet pile direction.
Every carpet tile has arrow markings on the backing. These aren’t just factory stamps—they indicate the direction of the carpet pile. Because pile direction changes how light reflects off the surface, mixing directions across adjacent tiles creates visible shading differences. Following these arrows is the foundation of a professional, uniform finish.
Here’s how to handle direction control for the two most common commercial carpet formats.

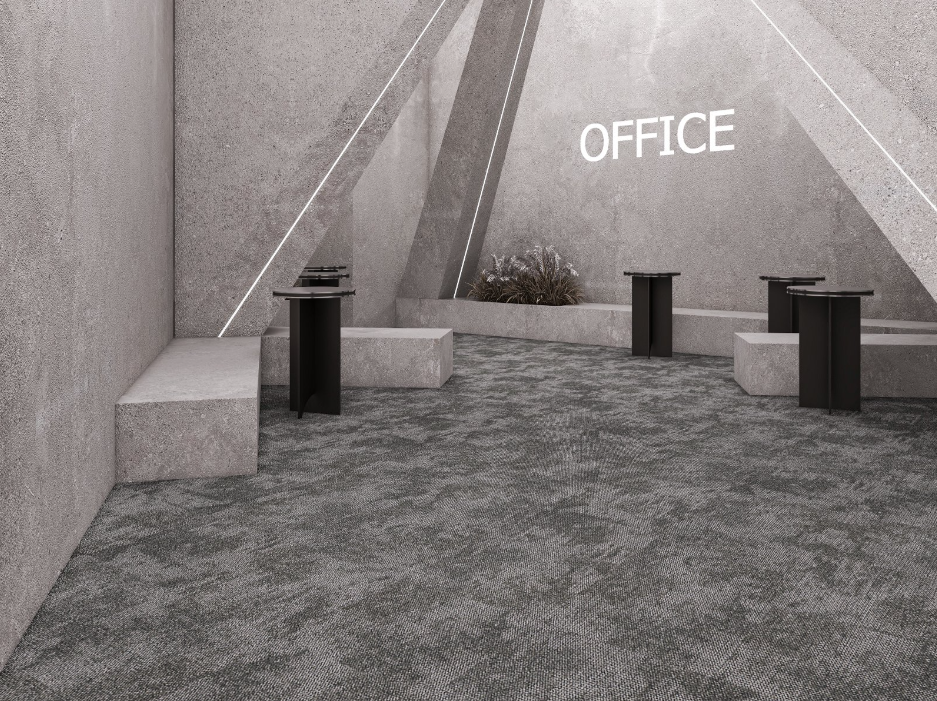

50×50 cm Carpet Tiles: The Office Standard
The 50×50 cm format is the most widely used office carpet tile size. It offers two primary installation methods:1. Monolithic Installation (Straight Lay)
All tiles are installed with arrows pointing the same direction. This is the default method for most commercial projects. It delivers a seamless, unified appearance with minimal visual interruption. It’s also the most forgiving method for large open-plan areas, making it the go-to choice when consistency is the priority.
2. Quarter-Turn Installation
Each tile is rotated 90 degrees clockwise or counter-clockwise. This creates subtle light-and-shadow variation within a single color, adding texture and visual interest without introducing new colors. It works well in reception areas, breakout zones, or any space where you want deliberate design contrast.
Direction Control Rule:
Whether you choose monolithic or quarter-turn, the key is uniformity. Quarter-turn means a consistent, repeating 90-degree rotation across the entire layout—not random spinning of individual tiles. Any inconsistency in arrow direction will create unacceptable shading that reads as a defect.

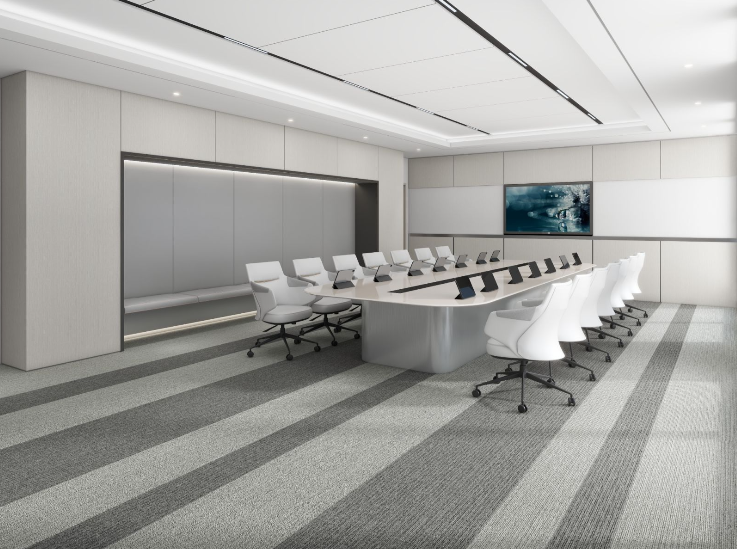

Plank Carpet: More Design Flexibility
Plank carpet (long-format tiles) opens up additional design possibilities. Here are the two most common layouts:1. Brick / Ashlar Installation
Offset each row by half a plank, similar to brickwork. This breaks up long vertical seams and creates a more natural visual flow. All planks must still follow the same arrow direction to avoid visible shading lines.
2. Herringbone / V-Pattern Installation
Planks are laid at an angle to create a herringbone or V-pattern. This delivers strong visual impact and a premium feel, but it demands a perfectly level subfloor and precise cutting. Expect higher material wastage, so factor that into your quantity calculations and budget early.
KARATILE Carpet: Specification Support That Prevents Site Errors
At KARATILE Carpet, we don’t just supply carpet tile—we support the entire installation process:
Clear Product Markings:Every tile backing features durable, easy-to-read arrow markings so installers can identify direction quickly on site, even in low-light conditions.Standardized Installation Drawings:Our project drawings specify pile direction, starting points, and installation methods. Your team works from documented instructions, not verbal briefings, which eliminates the miscommunication that causes most direction errors.
Bottom Line
The arrows on the back of your carpet tile are not optional manufacturing marks. They are a critical technical parameter that controls the final visual result. Strict adherence to arrow direction, combined with the right installation method and disciplined site management, is what transforms a stack of tiles into a professional, unified office floor.
Need help specifying office carpet tile or planning your installation layout? Contact the Goldea Carpet technical team for professional consultation and detailed installation drawings.
For procurement review
Decision comparison
| Stage | Critical checks | Record/deliverable |
|---|---|---|
| Receipt | Batch, quantity, packaging and environment | Delivery inspection |
| Subfloor | Flatness, dryness, cleanliness and strength | Subfloor record |
| Layout | Datums, arrows, edges and waste | Installation mock-up |
| Handover/care | Seams, corners, soil and attic stock | Handover and care plan |
Claim → Evidence
How claims map to evidence
ClaimThe site is ready for installation
EvidenceSubfloor, environment and material receipt records
ClaimDirection and pattern match the design
EvidenceArrow/layout drawing + first-off mock-up + site approval
ClaimAn issue belongs to product or installation
EvidenceBatch, zone, time, photos and installation/care records
When product-specific evidence is unavailable, retain the verification method and boundary instead of presenting an assumption as fact.
Process map
From question to delivery
- 01Receive materialsCheck batches and condition to site
- 02Approve subfloorRepair, clean and measure conditions
- 03Set out and dry layApprove direction, pattern and edges
- 04Install and hand overZone work, roll, record and issue care plan
Retain samples, specifications or approval records at every step so decisions survive the handoff from design to procurement and installation.
FAQ
Frequently asked questions
What should be checked first for “The Secret to Flawless Carpet Tile Installation? It’s All in the Arrows”?
Confirm the relevant zones, intensity, schedule, budget and maintenance conditions, then verify each conclusion against physical samples, the exact data sheet and valid evidence.
Why do carpet tile arrows matter?
Arrows control module direction. Monolithic, quarter-turn and designed layouts create different visual effects; random mixing can create unintended blocks.
What matters most in the subfloor?
It must be flat, sound and clean, and meet moisture or other conditions specified by the tile and adhesive systems.
Does local damage require replacing the whole floor?
Treat spots promptly under the care guide. If damage cannot be recovered, modular tiles can usually be replaced locally with the correct batch and direction.
